A Sculptured Stool

A Sculptured Stool

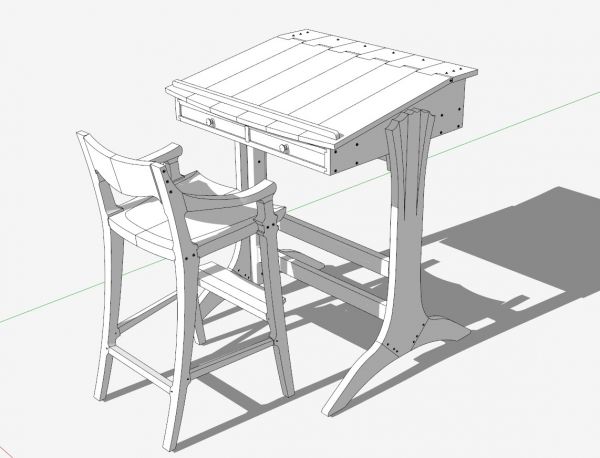

I've finished construction of the standup desk, and now need a matching stool. In the following video I'll show how I created the shaped back piece in the stool. This will involve standard SketchUp tools including the Line, Arc, Protractor, Tape Measure and PushPull Tools. Also the Intersect function is required since the Back involves compound shapes.

A Sculptured Stool

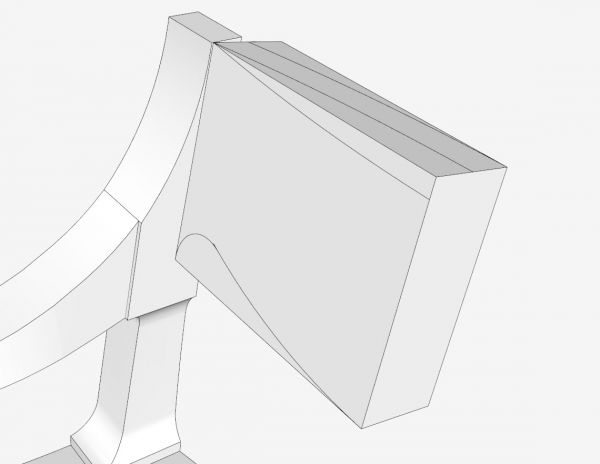

Here is the Stool in its basic unsculptured assembly, albeit without the Back. On the upper section of the Back Leg I create a rectangular face that represents the 8/4 stock I will use to shape the back.

A Sculptured Stool

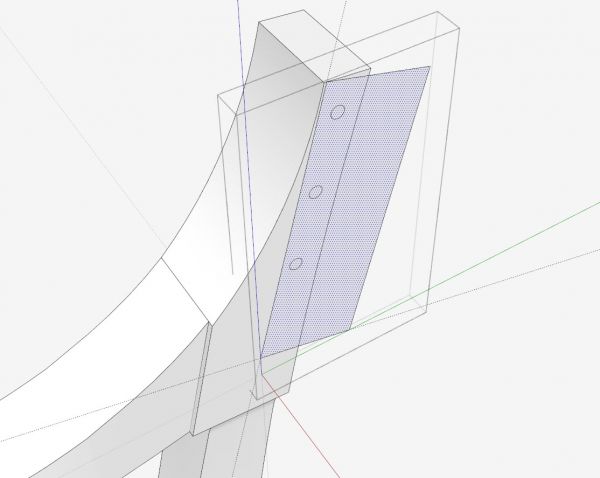

After pulling this out to half length, I create a curved shape looking down from the top of the back, and the curved shapes looking at the chair from the front.

A Sculptured Stool

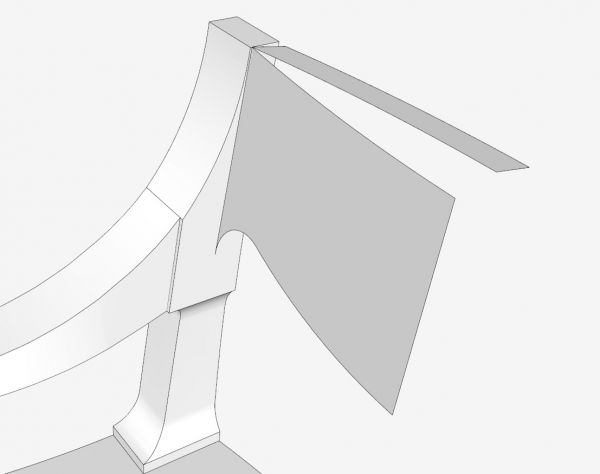

Here are the resulting two shaped faces that are now useful in making the overall shaped back.

A Sculptured Stool

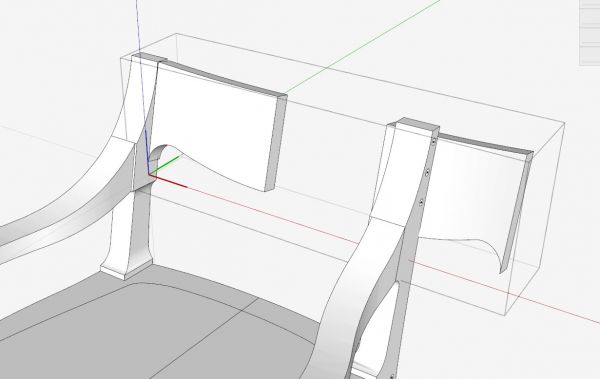

After pulling these out to length for total overlap, the Intersect function is used. Here is the shape after deleting the waste and then copying the symmetrical half.

A Sculptured Stool

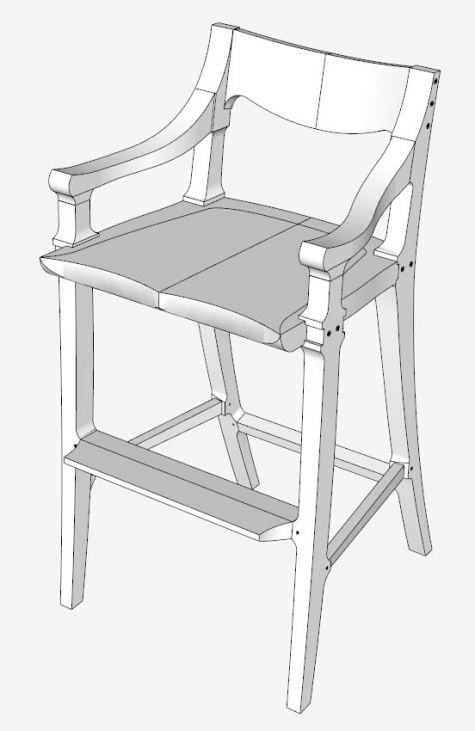

Here is the final result. But in the shop, the real sculpturing will be an arduous task with files, spokeshaves, block planes, scraper blades, and sandpaper.
